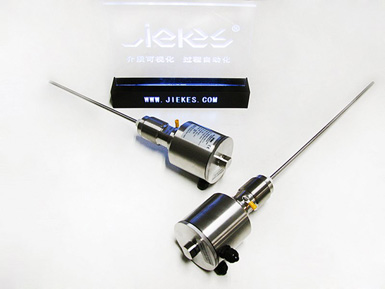

: Name：Dust Monitor for Detecting Filter Malfunctions; Type：FS700E01; Introduction：
The FlowSwitch 700E dust monitor is used to detect filter malfunctions caused by cracks or installation defects, for instance. The triboelectric measurement principle makes it possible to reliably detect dust penetration.

Main Benefits:
●  Maintenance free
●  Adjustable sensitivity
●  Adjustable switch
●  Condition indication with LED
●  Stainless steel housing
●  Compact form
●  Easy installation

Working Principle Technical Data Application Download

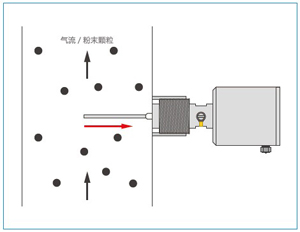

The technology is based on a modified triboelectric principle detecting particles interacting with the sensing rod and such particles just passing the rod. Build up on the rod surface will not be detected, only moving particles generate a flow rate proportional signal which is monitored by the electronic. Installation is done on the clean gas side downstream the filter at a metal duct by welding on of a thread bush boring through the duct wall and screwing in dust watch. On and off distance should this 3-fold of the pipe diameter area, the sensor length 1/3 to 2/3 of the pipe diameter.The device isn't usable at products, which build an electric conductive coating between sensing rod and pipe wall, caused of abrasion.

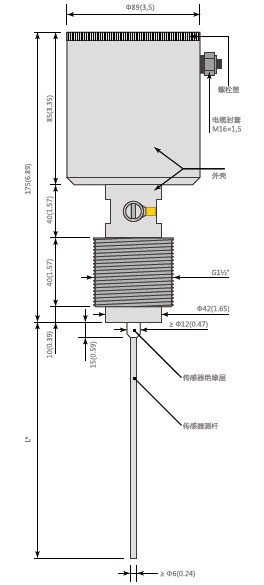

Technical Data
Solid particles in measuring media

Particle diameter ≥ 0.1μm
Measurement range 0.1mg/m3—1kg/m3

Process conditions

Temperature 90℃(optional 290℃)
Pressure 6bar( optional 25bar )
Flue gas velocity≥ 1m/s
Humidity 95％ RH
Working principle electrostatic induction
Output signal
Relay output max.1.5A，48V AC/DC (G01 )
Transistor output max. 25mA，31V DC (G02 )
Electrically isolated 4-20mA output (G20)

Environmental conditions
Temperature -20℃—85℃ (optional 290℃)
Pressure 6bar
Vibration 6m/s or smaller
Humidity 95％ RH

Material
Sensor rod（AISI 316 TI）stainless steel
Housing（1.4305）stainless steel
Isolation (standard) Polyamide (PA)
Sealing (standard) NBR
Protection class IP 67 (EN 60529)
ATEX (optional) Ⅱ 3G Ex nA Ⅱ T4
Ⅱ 3D Ex tD A22 IP67 T100℃
Mounting screw 1 ½''
Power supply17—31V DC
power consumption1.5W / 24V DC
Cable glands M16×1.5
Cable Diameter3.5—8mm
Weight 2,170g

Applications
The dust monitor FlowSWITCH 700E is used for the detection of filter failure functions e.g. crack or defect in assembling.By the triboelectric measuring principle a dust breakthrough can be recognized reliable.
Scope of Use
FlowSwitch 700E can be put in metallic pipes and channels which shall be monitored on dust

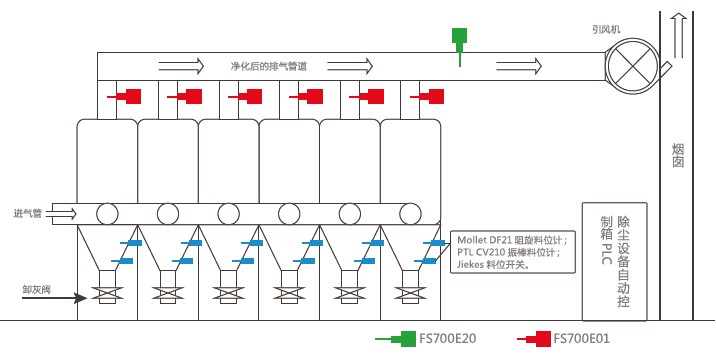

Applications for filter break

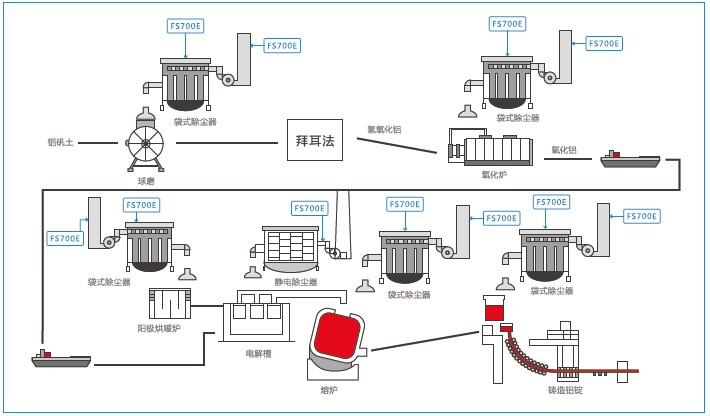

Applicatins in aluminum industry

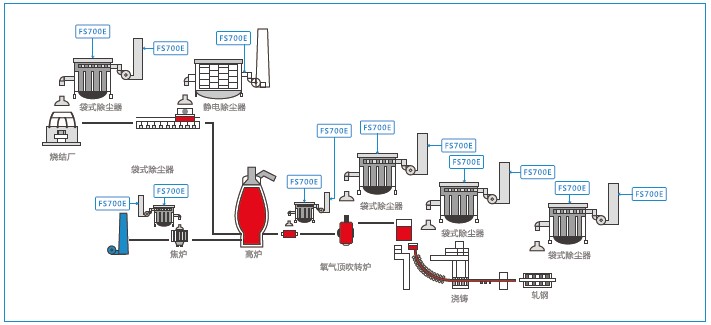

Applications in iron and steel metallurgy industry

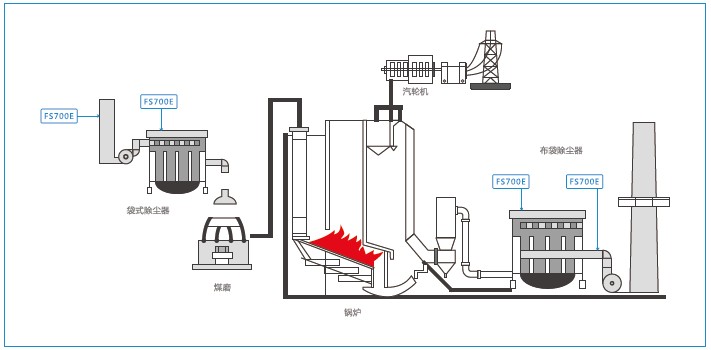

Applications in power plants

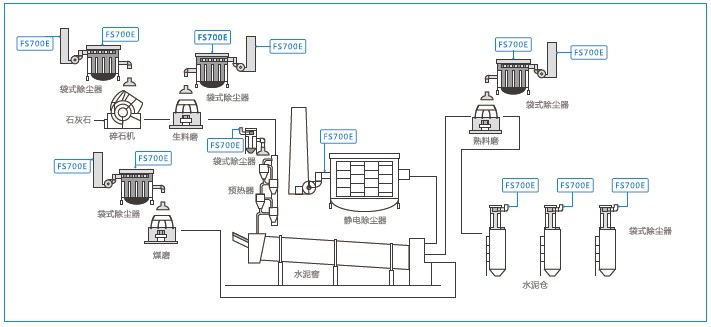

Applicatins in cement plant

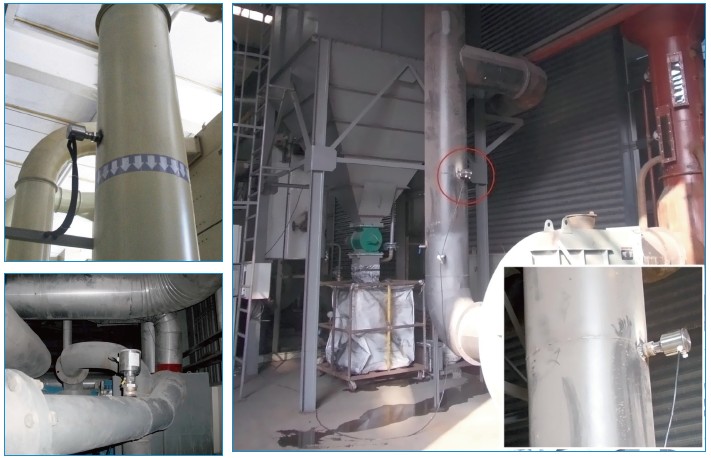

Field Application

Brochure
Dust monitoring for filter break FS700E.PDF
