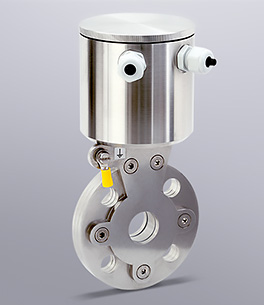

Mass Flow Measurement for Bulk MaterialsMF3000
Mass Flow Measurement for Bulk MaterialsMF3000 [MuTec]
Our solid flow meter MF 3000 is designed for flow measurement in metallic pipes from a few kg / h to many t / h. The system is suitable for on- line measurements of powders, dusts, pellets, and granules from 1 nm up to 2 cm in pneumatic or free fall conditions.The measurement principle of the MF 3000 is based on the physical Doppler-Effect, whereas the sensor generates a uniform field in the microwave frequency range inside the pipe. These microwaves are being reflected by particles passing through the pipe. Calculation of frequency and amplitude changes allows for accurate determination of solid flow. Non- moving particles like dust accumulation are excluded from the calculation.The installation is simple and cost effective via a welded branch, through which the sensor is screwed flush to the inside of the pipe. The sensor is connected to a DIN-rail mounted transmitter with 4...20 mA, RS232 and RS485 output. The calibration is easy by using our MF– SMART software and a reference flow value.Main Benefits:● For pneumatic conveyors and free falling processes; ● For all solid materials from a few kg/h to many t/h; ● No armatures inside the pipe and inside flush fitting; ● Very fast and contactless measurement; ● Easy, quick and cost effective installation and start-up; ● Galvanic separated DIN-Rail Transmitter with RS232- and RS485-Interface; ● Robust stainless steel version, abrasion and maintenance free;● Limit value monitoring with alarm contact; ● Sensor-transmitter distance up to 2.000 m; ● Easy and quick calibration; ● Adjustable sensitivity; ● Optional: ATEX for Zone 20 and Zone 2;
MIC-Smart Microwave Measuring SystemMIC-Smart
MIC-Smart Microwave Measuring SystemMIC-Smart [HENSE]
The simple and reliable flow measurement for solids in pneumatic- and gravimetric conveying systemsThe MIC Microwave Measuring System consists of a sensor head with stainless steel pipe that acts as a waveguide and the electronic unit. To mount the equipment a hole for the mounting plug is first drilled in the conduit. The sensor is installed in line with the wall and therefore is wear-free.The system is virtually unaffected by pressure and temperature and provides a typical accuracy within +/- 5 % in pneumatic conveying systems (with even deviation of the product). The MIC sensor can be use to monitor and control the solid flow in vertical pipes and pneumatic feed lines. For pipe diameters above 250mm it could be necessary to install 2 or 3 sensors for a better average of the particle flow profile.The sensor face transmits a frequency of 24 GHz to the powder or grain material. The pulses are reflected from the particles and analysed via a special algorithm. The result is a flow proportional current output that is amplified and conditioned inside the remote electronic unit. The instrumentation displays the flow value direct in kg/h and in absolute quantity (kg) (t).Advantagessimple installation in existing pipe workmeasurement flush with wall and non-contactmaintenance-freedetects only "moving" particleshigh operating safetysuitable even for very small flow rates
Mass Flow Measurement for Bulk MaterialsMF3000
Mass Flow Measurement for Bulk Materials
MIC-Smart Microwave Measuring SystemMIC-Smart
MIC-Smart Microwave Measuring System
