Name：MOLOScode system for the identification of conneti

Type：

Introduction：

Each hose gets it’s own name by the RFID-technology of MOLLET

Function

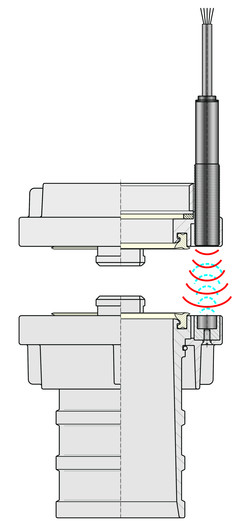

Installation of one RFID read device per tube coupling
Installation of two transponders per hose coupling
RFID-transponders are powered by the read head
Transponder sends signals on request
RFID read devices receive and check these signals
Serial bus RS485 picks up the provided signals
Signal analysis is done by the control

Explanation RFID
RFID means Radiofrequency-Identification
Contactless data transfer
Elements: Transponder and RFID read head
Transponder composed of transmitter and responder

Working Principle Technical Data Application Download

Explanation RFID
RFID means Radiofrequency-Identification
Contactless data transfer
Elements: Transponder and RFID read head
Transponder composed of transmitter and responder

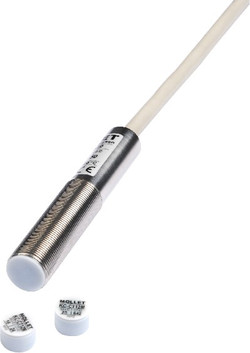

RFID-Read device (KC-LG16M-10)
Housing Stainless steel 1.4571
Active surface PTFE
Supply voltage 7 V ... 9 V DC
Current consumption 50 mA
Reading distance 1 ... 5 mm
Serial interface RS485 (2-wire)
Transmission rate 9600 Baud
8 data bits, 1 stop bit, no parity bit
Ambient temperature -20 °C ... +70 °C
Any mounting position
Protection IP68 according DIN EN 60529
No maintenance

RFID-Transponder (KC-CT12M)
Housing PTFE
5 years data preservation after the last reading
Ambient temperature -20 °C ... +70 °C
Any mounting position
Protection IP68 according DIN EN 60529
No maintenance
