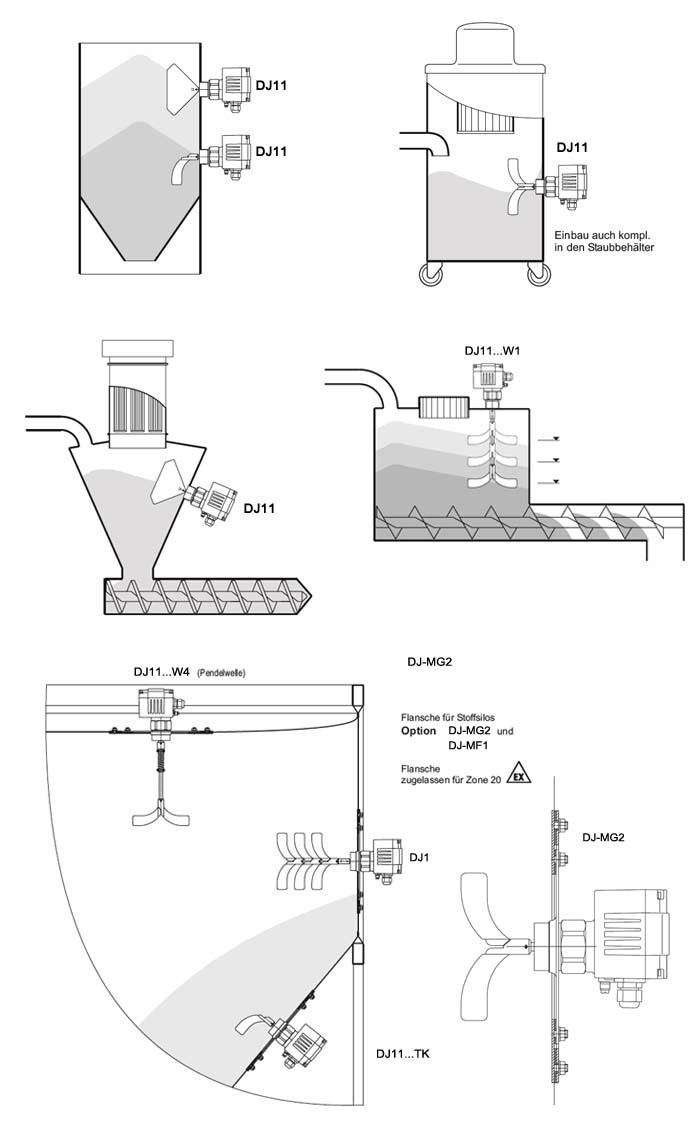

The rotary paddle level indicator DF11 is used in most bulk solids for full-, empty or demand-detection within silos and bins. The sensors can be adjusted to the requirements of many applications with a limited number of options and accessories.
Product Features
unaffected by dust, caking, and conductivity of material
to be used in areas with potentially dust explosive atmospheres as well
versatile and universally applicable
unbeatable price-performance-ratio
jib extension up to 2.000 mm maximum length
high reliability
continuous operation without maintenance
easy installation
The rotating measuring blade projecting into the vessel is driven by a gearmotor.When the bulk goods heap up to the level of the blade, this prevents the blade from turning and it comes to a standstill.A second switch turns the motor delayed off.Should the level of the bulk goods drop and the measuring blade can turn freely, a spring brings the motor back into its original end position. At the same time the motor is turned on again and the signal switch is reset. The return torque turns the fitted motor back from its end position and actuates the signal switch by a switching arm.
Supply voltage | 230,115,48,24 V AC | Signalschalter
|
Signal contact | 1mA 4V DC 2A / 250V AC | change-over contact, potential-free |
Outputs |
|
|
Switching output |
|
|
Bulk goods temperature | -25°C ~ +80 °C +80°C |
|
Ambient temperature | -40°C〜+70°C |
|
Process pressure | -1 bar … 25 bar -0.5bar~1.0bar to 100 bar on request |
|
ATEX approval | Dust Ex |
|
Process connection | Threads | Aluminium |
Material Housing | IP66 | Aluminium |
| Shafts and rope up to 2m length | Stainless steel |
| Measuring blades | Stainless steel,plastics |
Mounting position | any / vertical depending on design |
|
Maintenance | none |
|
No download.
